What Are Lug Nut Patterns on Honda ATVs?

Accessories May 15, 2026

You find an excellent deal on aftermarket wheels for your Honda Rancher. They are the right size and price, so you place your order. However, when they arrive, they do not fit.

If you have experienced this, you know how frustrating it can be. If not, consider this a warning to help you avoid unnecessary costs and delays.

The issue is almost always the lug nut pattern.

Whether you drive a Honda Recon, Foreman, or Rubicon, understanding your ATV’s bolt pattern is essential before purchasing new wheels or tires. If you confirm the pattern, installation is straightforward. If not, you may need to return the parts.

Review the following information to ensure you select the correct wheels by checking your bolt pattern before purchasing.

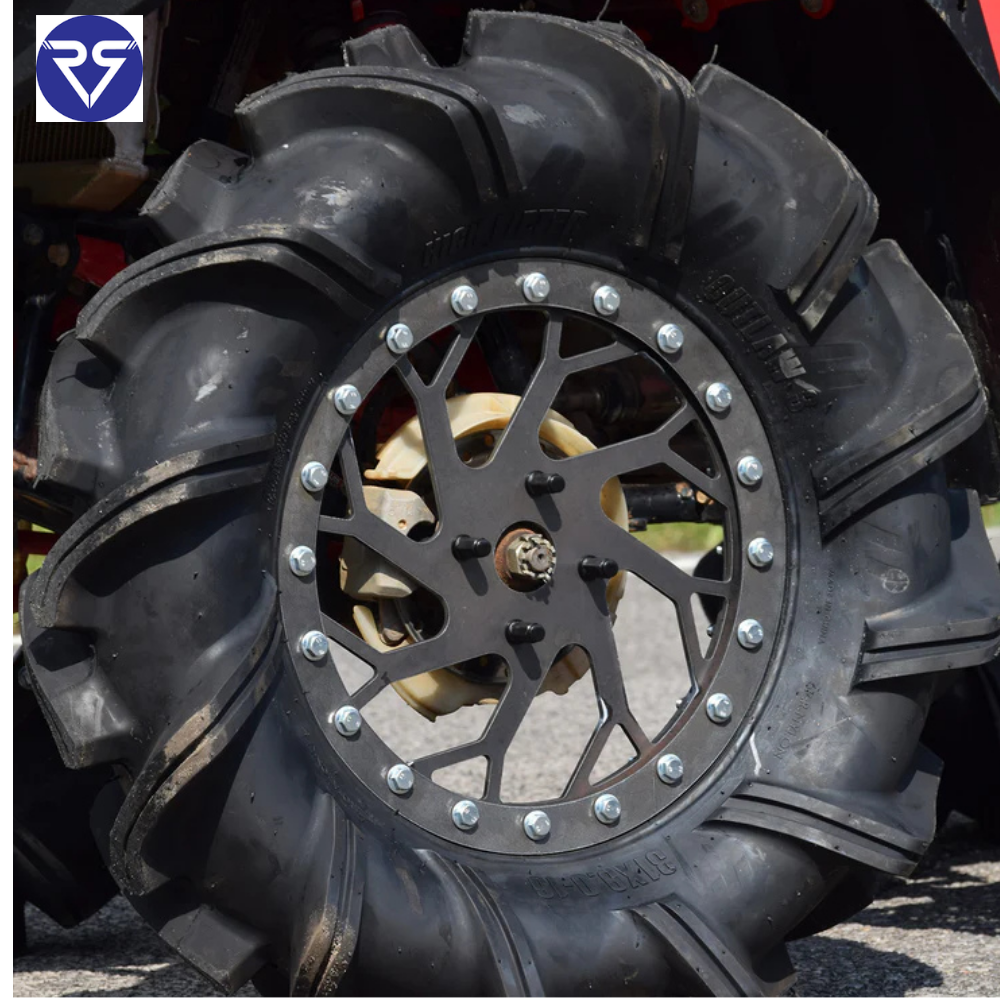

What Exactly Is a Lug Nut Pattern?

A lug nut pattern is a simple two number code that tells you your ATV wheel setup.

For instance, 4 x 110. The first number (4) is the number of lug holes on the wheel.

The second number (110) is the diameter, in millimeters, of the imaginary circle that passes through the center of each lug hole—this is called the Pitch Circle Diameter (PCD).

You must match the hub dimensions exactly with your ATV hub. Incorrect PCD can lead to failure of the trail. Off-road loads shall have proper wheel retention, in accordance with CPSC standards (16 CFR Part 1420). If they're even a little off, the wheel won't be seated correctly, or worse, it may be seated but fail under load. Vessel Powersports wheels are manufactured to the precise PCD of your Honda for worry-free performance.

Honda ATV Lug Nut Patterns: Model by Model

Here’s where it gets practical. One of the real advantages of riding a Honda is that the brand has remained remarkably consistent with its lug nut patterns across the ATV lineup. That means if you're a Honda rider, you're already ahead of the game.

Honda Recon

The Recon typically uses a 4×110 bolt pattern across its generations. It’s a lighter, trail-focused machine, and the 4-lug setup suits its compact build perfectly.

Honda Rancher

One of the most popular Honda ATVs on the market, the Rancher uses a 4×110 bolt pattern on both SRA (Solid Rear Axle) and IRS (Independent Rear Suspension) variants. No matter what year of rancher you’re riding, the 4×110 pattern has remained consistent, making wheel shopping much easier.

Honda Foreman

The Foreman is a heavy-duty workhorse, and it also uses a 4×110 pattern on most configurations. Whether you’re doing utility work, hauling, or running larger tires, its wheel fitment remains consistent within Honda’s lineup.

Honda Rubicon

Honda’s flagship ATV, featuring its automatic DCT transmission, also uses a 4×110 bolt pattern. Same four studs, same 110 mm circle—consistent, reliable, and easy to shop for.

Honda UTV & Side by Side Lug Patterns

If you’ve moved up to a Honda Pioneer or Honda Talon, the bolt pattern changes. UTVs are heavier and built for tougher use, so their wheel specs are different from Honda ATVs.

Honda Pioneer 500 / 520 These compact side by sides use a 4×137 bolt pattern. It’s a wider PCD than most ATV models and is designed for extra weight and torque.
Honda Pioneer 700 — Also uses a 4×137 bolt pattern, matching the smaller Pioneer models.
Honda Pioneer 1000 — Honda’s largest Pioneer keeps the 4×137 bolt pattern for strength and consistency under heavy work and trail use.
Honda Talon 1000X / 1000R / 1000-4: All Talon models use a 4×137 bolt pattern. These sport-focused machines are built for speed and rough terrain, and the wheel setup supports that.

Why Getting the Pattern Right Is Non-negotiable

A wrong or close but off pattern won’t just prevent proper fitment; it can cause vibration, wobble, and unsafe handling because the wheel may not seat correctly. It can also damage studs and the hub if forced, leading to costly repairs. Since tire and wheel upgrades often go together, an incorrect pattern can force you to restart your search entirely. Because wheels are the base for most other upgrades, everything depends on getting this right. Always confirm your bolt pattern before buying; it only takes a few minutes and can save time, money, and frustration.

Once Fitment Is Dialed In, Here's What Honda Riders Upgrade Next

Once your wheels and tires are dialed in, most Honda riders naturally move on to other upgrades. That’s where we come in.

We focus on Honda ATV and UTV platforms, offering direct-fit parts with no guesswork or adapters. Everything is designed specifically for models like the Recon, Rancher, Foreman, Rubicon, Pioneer, and Talon.

Popular upgrades include LED headlights for much better night visibility and a cleaner look, radiator relocation kits for improved protection in mud and water, and other essentials like skid plates, lift kits, and snorkel kits.

The key difference is simple: nothing is generic. If it’s listed for your Honda, it’s built to fit and perform on your machine.

Know Your Fitment Before You Upgrade

Lug nut patterns aren’t complicated, but getting them wrong can get expensive.

Most Honda ATVs (Recon, Rancher, Foreman, and Rubicon) use a 4×110 bolt pattern. Honda UTVs and side by sides (Pioneer and Talon) typically use a 4×137 pattern. Always double-check your exact model year before buying wheels, tires, or accessories.

Once you know your fitment, upgrades become simple—bigger tires, stronger wheels, lighting, and protection upgrades all open up. Honda has strong aftermarket support, and Vessel Powersports is built specifically for that community.

Know your fitment. Upgrade with confidence. Ride harder.

Frequently Asked Questions

1. What is the lug nut pattern on a Honda ATV?

Most Honda Recon, Rancher, Foreman, and Rubicon ATVs use the standard 4x110 bolt pattern.

2. Do the Honda Pioneer share the same bolt pattern?

Yes, the Honda Pioneer 500, Pioneer 520, Pioneer 700, and Pioneer 1000 all use a 4x137 bolt pattern.

3. What lug nut pattern do the Honda Talon use?

The Honda Talon 1000X, Talon 1000R, and Talon 1000-4 all run a 4x137 wheel bolt pattern.

4. Can I use the same wheels on my Honda Rancher and Pioneer?

No, the Honda Rancher uses a 4x110, while the Honda Pioneer 1000 requires a different 4x137 pattern.

5. Is the lug nut pattern the same on the Honda Foreman and Rubicon?

Yes, both the Honda Foreman and the Honda Rubicon share a consistent 4x110 ATV bolt pattern.
