Step-by-Step Guide to Installing an ATV/UTV Winch
Getting stuck in a deep mud hole is a rite of passage for many riders. You hit the throttle and hope for the best, but sometimes the mud wins. A winch is the best tool to solve this problem quickly.
Interestingly, the Consumer Product Safety Commission notes that thousands of off-road incidents occur yearly, many involving vehicles stuck in remote areas where recovery tools are vital.
We help you avoid being stranded by making sure your Honda is ready for any trail. At Vessel Powersports, we focus on keeping you moving through the toughest terrain.
Choosing Your Winch and Tools
Before you start, you need the right gear for your specific machine. A Honda Recon or Rancher usually needs a smaller winch, while a Foreman or Rubicon can handle something with more pulling power. For larger UTVs like the Honda Pioneer 1000 or 1000R, you will want a heavy-duty option. Most riders find that a 2,500 lb to 4,500 lb winch works best for these models.
-
Socket set: To tighten bolts on the frame.
-
Wire cutters: For trimming electrical leads.
-
Electrical tape: To protect connections from water.
-
Zip ties: To keep wiring away from moving parts.
ATV/UTV Winch Installation Explained Step by Step
Installing a winch on your Honda is a simple process. It can greatly improve your trail confidence. You feel more prepared for rough rides. Follow a few clear stages to get it right. Make sure each step is done carefully. It helps your machine stay ready for tough recovery situations.
Step 1: Mounting the Winch and Plate
The first step is installing the mounting bracket securely. This plate works as the base for your winch. On a Honda Rancher or Foreman, the mount usually bolts directly to the front frame. You might need to remove some plastic trim or the front bumper to reach the bolt holes. Align the plate and tighten the hardware provided by the manufacturer.
After the plate is secure, you can place the winch on top of it. Fix the winch to the mount using four main bolts carefully. It is important to check that the rope or cable pulls straight through the fairlead, properly aligned. If the winch is crooked, the line will bunch up and cause serious damage. Always double-check torque specs to ensure nothing vibrates loose on a rough ride carefully secured.
Step 2: Running the Electrical Wires
Wiring is the most time-consuming part of the installation. You have to connect the winch to the battery and the contactor. The contactor is a small box that tells the winch when to pull. Find a dry, protected spot for this box. On a Honda Pioneer 1000, under the hood is a great location. For ATVs like the Rubicon, under the seat or near the battery box works well.

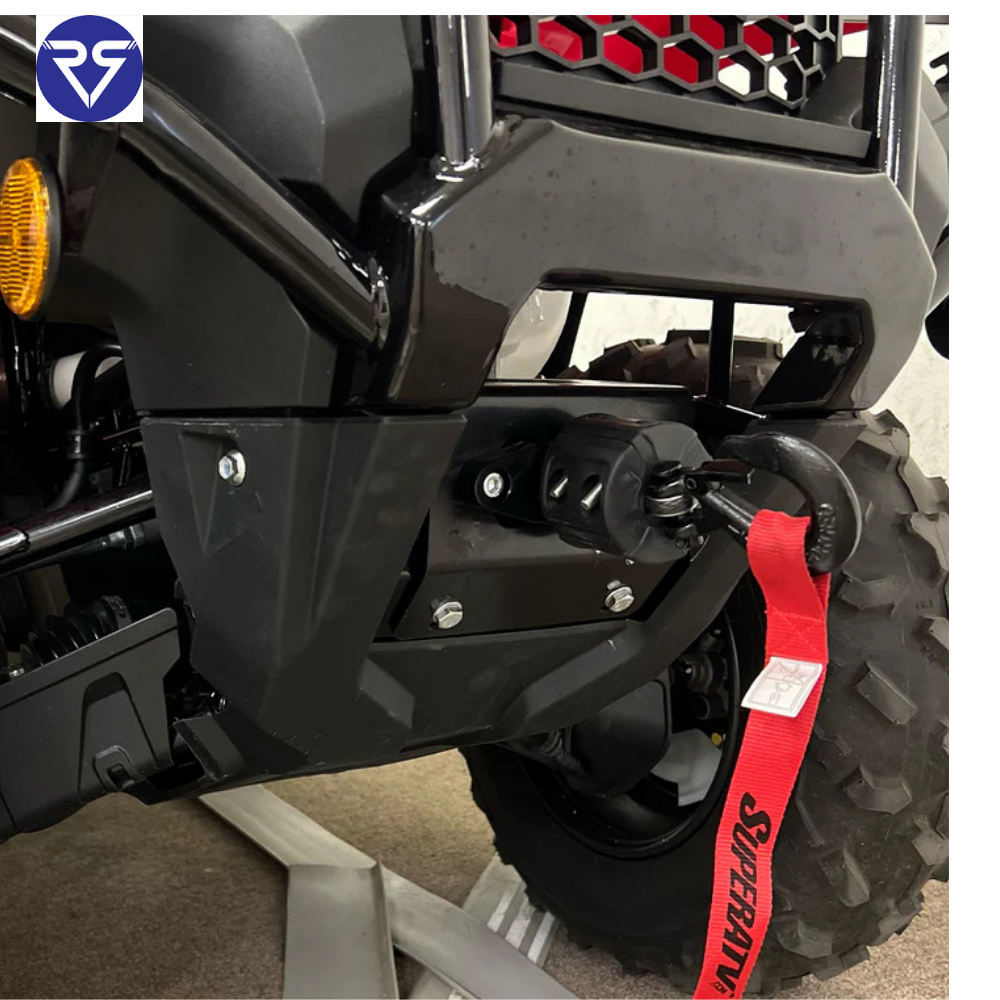

Run the long wires from the winch back to the contactor. Keep these wires away from the engine or moving suspension parts. Heat can melt the insulation and cause a short circuit. Use zip ties to fasten the wires securely to the frame. If you are looking for a reliable option, the SuperATV Black Ops 2500 LB. ATV/UTV Winch is a popular choice for many Honda owners because of its durability.
Step 3: Installing the Handlebar Switch
Next, you need a way to control the winch from the driver's seat. Most kits come with a handlebar-mounted rocker switch or a dash switch for UTVs. Mount the switch where you can reach it easily while still holding the grips. For a Honda Recon, the left side of the handlebars is usually the standard spot.
You must tap into a "keyed" power source for the switch. This means the winch switch only gets power when the ignition is turned on. This prevents the battery from draining while the machine sits in the garage. Use a test light to find a wire that only has power when the key is in the "on" position. Connect the small trigger wire from your switch to this source.
Step 4: Final Connections and Testing
Connect the final heavy-gauge wires to your battery terminals. The red wire goes to the positive post, the black wire goes to the negative post. Tighten the terminals well to ensure a strong electrical connection. Loose wires can cause sparks or prevent the winch from pulling at full strength.
-
Check Clearance: Ensure wires don't rub against the tires.
-
Test Spool: Pull the line out and reel it back in slowly.
-
Listen: Check for clicking sounds that indicate loose bolts.
-
Trim: Cut the ends off all your zip ties for a clean look.
Benefits of a Quality Winch
-
It provides peace of mind when riding alone in the woods.
-
You can help friends who might not be as prepared as you.
-
A winch can also be used for chores like moving fallen logs.
-
It increases the utility and resale value of your Honda machine.
Having a winch changes how you ride. You can take on tougher trails because you know you have a way out. It turns a potential disaster into a minor delay. Most experienced riders consider a winch the most important upgrade for any off-road vehicle.
Stay Ready for Any Trail Situation
Installing a winch on your Honda ATV or UTV is not just about recovery. It is about confidence on every ride. You move deeper into mud, climb harder trails, and explore without hesitation.
At Vessel Powersports, we focus on building parts that help you push limits on Honda machines like the Rancher, Foreman, Rubicon, and Pioneer series. Our experience comes from real off-road riding, not theory. That is why we understand what riders actually need on the trail.
We support Honda ATV and SXS owners with durable components, expert guidance, and real-world tested solutions. Whether you are upgrading recovery gear or building a full trail setup, we help you stay prepared.
If you are planning your next upgrade, now is the right time to equip your Honda machine with a proper winch setup and get trail-ready.
Frequently Asked Questions
1. What winch size fits my Honda?
Weight capacity depends on your specific model. Small ATVs like the Honda Recon thrive with a 2,500 lb unit. Heavier machines like the Honda Pioneer 1000 require a 4,500 lb pull rating for safe recovery in thick mud.
2. Can I use a wireless remote?
Yes, most modern kits allow for wireless upgrades. This is helpful when you need to stand away from the vehicle for better visibility. It keeps you safe if a cable snaps under heavy tension.
3. Do I need a second battery?
Standard Honda batteries handle occasional winching fine. If you use yours for constant plowing or heavy work, consider a deep-cycle upgrade. This prevents the stator from getting overwhelmed during long pulls.
4. How do I maintain the rope?
Synthetic lines need regular cleaning after muddy rides. Simply pull the line out, rinse it with fresh water, and let it dry. This prevents grit from wearing down the fibers over time.
